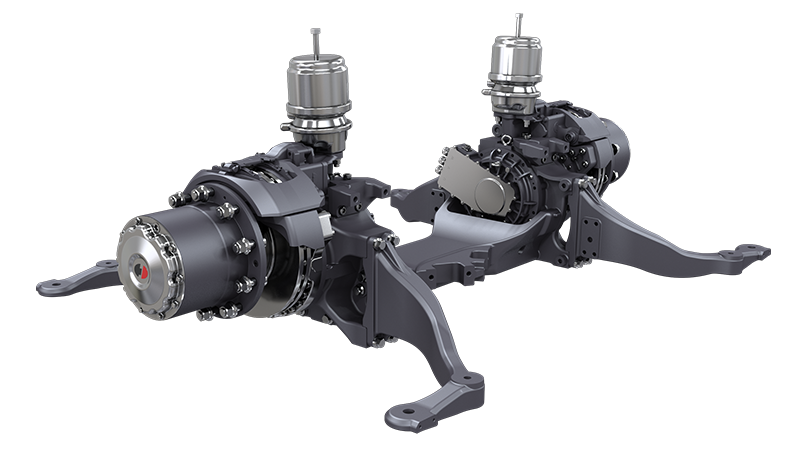

HDE13T（Rim）
  • Recommended model：23700Nm
  • Rim mounting end face distance：2×75kw
  • Wheel bolt distribution circle：2×120kw
  • Speed ratio：22.823
  • Axle load：13t
  • Common leaf spring center distance：13t
  • Motor maximum power：2×120kw
  • Motor rated power：2×75kw
  • The maximum output torque of the whole axle：23700Nm
13T/16T前车桥
车辆：GVW:GVW≤49T 轴荷：前桥5.5T-9.5T 中后桥10T-13T 优势： 高可靠性B10寿命可达180万公里，冷压装工艺，
避免微动磨损引起跑偏和抖动。
高防护主销换润滑脂里程：12万公里；
免维护轮端终身免维护，提高出勤效率。
Product advantage
  • 01
    High reliabilityB10 lifetime is 1800,000 km, leading in the industry.
  • 02
    High efficiencySystem efficiency is enhanced by 8.5% compared with conventional scheme;
  • 03
    LightweightThe integrated axle weight is lighter by 22% compared with conventional scheme;
  • 04
    Strong poweradopts high-speed electric motor, match reduction case with large ratio, realized the output of large torque;
Application models
  • Truck
  • Bus
